dotsWritableDOutArduinoLEDs Class Reference

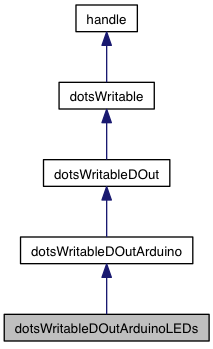

Inheritance diagram for dotsWritableDOutArduinoLEDs:

Properties and Events
Property	pinBase = 'A'
	Show LEDs using Liana's arduino masterpiece. More...
Properties and Events inherited from dotsWritableDOut
Property	defaultPauseBetweenPulses = 0.1
	for sendTTL pulses
Properties and Events inherited from dotsWritable
Property	isAvailable = false
	whether or not the object is ready to read() from
Property	clockFunction
	any function that returns the current time as a number

Methods
self	dotsWritableDOutArduinoLEDs ()
	Arguments are ultimately passed to openDevice.
timestamp	toggleLED (self, indexOrName, color, onOff)
	Quickly turn on LED. More...
timestamp	setLEDs (self, specs)
	Turn on/off LED(s) More...
timestamp	turnOffLEDs (self, indices)
	Turn off all LEDs.
Methods inherited from dotsWritableDOutArduino
self	dotsWritableDOutArduino ()
	Arguments are ultimately passed to openDevice.
timestamp	writeDigitalPin (self, pin, value)
	Write to a single digital output channel. More...
timestamp	writeDigitalPins (self, pins, values)
	Write to a multiple digital output channels at once. More...
Methods inherited from dotsWritableDOut
self	dotsWritableDOut ()
	Constructor takes no arguments.
timestamp	sendStrobedWord (self, word, port)
	Send a strobed digital word. More...
timestamp	sendTTLPulse (self)
	Send a single TTL pulse. More...
firstTimestamp lastTimestamp	sendTTLPulses (self, numPulses, pauseBetweenPulses, channel)
	Send multiple TTL pulses Timestamps are estimates of onset times of first and last pulses. More...
timestamp	sendTTLSignal (self, channel, signal, frequency)
	Send a TTL signal or waveform. More...
Methods inherited from dotsWritable
self	dotsWritable ()
	Constructor takes no arguments.
	initialize (self, varargin)
	Locate, acquire, configure, etc. device and component resources.
time	getDeviceTime (self)
	Get the current time from clockFunction.
	close (self)
	Release any resources acquired by initialize().
	delete (self)
	Automatically close when Matlab is done with this object.

Additional Inherited Members
Protected Properties inherited from dotsWritableDOutArduino
Property	arduino
	Implement digital outputs using an Arduino, via the Matlab Arduino toolbox. More...
Protected Methods inherited from dotsWritable
	openDevice (self)
	Locate and acquire input device resources (for subclasses). More...
	closeDevice (self)
	Release input device resources (for subclasses). More...
Static Methods inherited from dotsWritableDOut
static dout	getDefault ()
	get default Dout device

Methods

toggleLED()

timestamp toggleLED	(	self	,
		indexOrName	,
		color	,
		onOff
	)

Quickly turn on LED.

indexOrName is assumed to be based on Liana's 5-LED configuration: 1: Right 2: Top 3: Center 4: Left 5: Bottom Color is 'r', 'g', 'b' onOff is 0=off, 1=on,

setLEDs()

timestamp setLEDs	(	self	,
		specs
	)

Turn on/off LED(s)

specs is cell array of index, value pairs; e.g., {1 'r' 2 'off' 3 'g'}

Properties and Events

pinBase

Property pinBase = 'A'

Show LEDs using Liana's arduino masterpiece.

pins [0, 1, 2, 3, ...] are [r1, g1, b1, r2, ...] Created by jig from Liana Keesing's prototype July 13, 2019 For accessing hardware pins

---

The documentation for this class was generated from the following file:

• dotsWritableDOutArduinoLEDs.m
