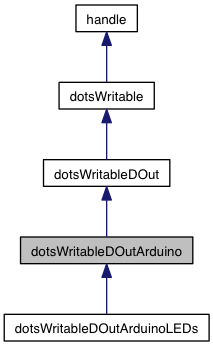

Inheritance diagram for dotsWritableDOutArduino:

[legend]

Protected Properties
Property	arduino
	Implement digital outputs using an Arduino, via the Matlab Arduino toolbox. More...

Methods
self	dotsWritableDOutArduino ()
	Arguments are ultimately passed to openDevice.

timestamp	writeDigitalPin (self, pin, value)
	Write to a single digital output channel. More...

timestamp	writeDigitalPins (self, pins, values)
	Write to a multiple digital output channels at once. More...

Methods inherited from dotsWritableDOut
self	dotsWritableDOut ()
	Constructor takes no arguments.

timestamp	sendStrobedWord (self, word, port)
	Send a strobed digital word. More...

timestamp	sendTTLPulse (self)
	Send a single TTL pulse. More...

firstTimestamp lastTimestamp	sendTTLPulses (self, numPulses, pauseBetweenPulses, channel)
	Send multiple TTL pulses Timestamps are estimates of onset times of first and last pulses. More...

timestamp	sendTTLSignal (self, channel, signal, frequency)
	Send a TTL signal or waveform. More...

Methods inherited from dotsWritable
self	dotsWritable ()
	Constructor takes no arguments.

	initialize (self, varargin)
	Locate, acquire, configure, etc. device and component resources.

time	getDeviceTime (self)
	Get the current time from clockFunction.

	close (self)
	Release any resources acquired by initialize().

	delete (self)
	Automatically close when Matlab is done with this object.

Additional Inherited Members
Properties and Events inherited from dotsWritableDOut
Property	defaultPauseBetweenPulses = 0.1
	for sendTTL pulses

Properties and Events inherited from dotsWritable
Property	isAvailable = false
	whether or not the object is ready to read() from

Property	clockFunction
	any function that returns the current time as a number

Protected Methods inherited from dotsWritable
	openDevice (self)
	Locate and acquire input device resources (for subclasses). More...

	closeDevice (self)
	Release input device resources (for subclasses). More...

Static Methods inherited from dotsWritableDOut
static dout	getDefault ()
	get default Dout device

Methods

◆ writeDigitalPin()

Write to a single digital output channel.

pin is string value is scalar

timestamp writeDigitalPins	(	self	,
		pins	,
		values
	)

Write to a multiple digital output channels at once.

pin is cell array of strings value is vector

Property arduino

protected

Implement digital outputs using an Arduino, via the Matlab Arduino toolbox.

The arduino object

The documentation for this class was generated from the following file:
