dotsReadableEye Class Reference

Overview

Superclass for objects that read data from an eye tracker.

dotsReadableEye extends the dotsReadable superclass with support for eye trackers that measure x and y point of gaze, and pupil size.

A note about Eye Tracker Coordinates:

dotsReadableEye transforms x and y position data from raw eye tracker coordinates into a user-defined coordinate system that might be more natural, such as degrees of visual angle.

Subclasses

dotsReadableEye itself is not a usable class. Rather, it provides a uniform interface and core functionality for subclasses. Subclasses should redefine the following methods in order to read actual data:

• openDevice()
• closeDevice()
• calibrateDevice()
• defineCompoundEvent() -> Optional, see example in dotsReadableEye
• recordDevice()
• openComponents()
• closeComponents()

These are from the dotsReadable superclass. Subclasses must also define a new method:

• readRawEyeData()

This method should read and return new data from the eye tracker. The raw data will be transformed automatically into user-defined coordinates.

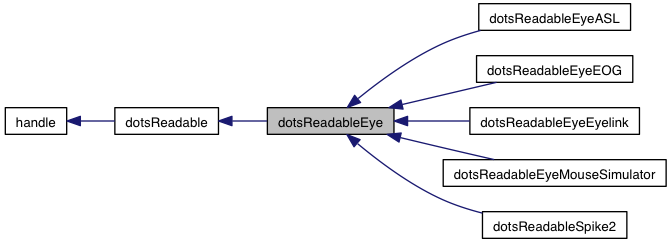

Inheritance diagram for dotsReadableEye:

Properties and Events
Property	x
	the current "x" position of the eye in user-defined coordinates.
Property	y
	the current "y" position of the eye in user-defined coordinates.
Property	pupil
	the current pupil size, offset and scaled
Property	time
	The time of the most-recent sample (in ui time)
Property	sampleFrequency
	frequency in Hz of eye tracker data samples More...
Property	readEventsOnly = true
	Flag determining whether only to read event data see readNewData for details. More...
Property	helpers
	helper objects including screen ensemble
	gazeMonitor
	Gaze monitor properties.
Properties and Events inherited from dotsReadable
Property	isAvailable = false
	whether or not the object is ready to read() from
Property	components
	struct array with details about each component
Property	state
	matrix of ID, latest value, and latest time indexed by ID
Property	history
	matrix of component ID, value, and time from previous read()
Property	isAutoRead = true
	whether or not to to invoke read() during getValue(), etc.
Property	eventDefinitions
	struct array defining events of interest, indexed by ID
Property	initialEventQueueSize = 100
	initial size of queue for events of interest
Property	clockFunction
	any function that returns the current time as a number
Property	filename
	name of the data file for devices that store their own data
Property	filepath
	where the file is
Property	recordDuringCalibration = true
	controls whether or not to stop recording during calibration
Property	useGUI = false
	Flag to use GUI for feedback, etc.
Property	useExistingCalibration = false
	Flag to skip calibration routine.
Property	calibrationUI
	Possibly use a keyboard or other UI to help with calibration.
Property	deactivateEventsAtStartTrial =false
	Flag to deactivate all events at the beginning of each trial.

Additional Inherited Members
Protected Properties inherited from dotsReadable
Property	eventQueue
	array of queued events (row indices into history)
Property	queueNext
	queue index of the next event to be dequeued
Property	queueLast =0
	queue index of the last event enqueued
Property	isRecording =false
	keep track of whether device is currenly writing to a data file
Property	didCalibrate = true
	Keep track of whether calibration occurs.
Property	defaultEventPrefix = 'event'
	Default prefix for event names: <prefix>_<componentName>
Property	eventSets
	Strutures with different named event definitions, in case we want to quickly swap between them.
Methods inherited from dotsReadable
self	dotsReadable ()
	Constructor takes no arguments.
	initialize (self)
	Locate, acquire, configure, etc. device and component resources.
	calibrate (self, varargin)
	Calibrate the device More...
	record (self, onFlag, filename)
	Open/close data file associated with the device Arguments: onFlag ... More...
	reset (self, varargin)
	reset device More...
	close (self)
	Release any resources acquired by initialize().
	delete (self)
	Automatically close when Matlab is done with this object.
	read (self)
	Add incoming data to history and detect events of interest. More...
	flushData (self, waitForNoEvents)
	Delete historical data and reset the current state. More...
	logData (self)
	Record current and historical data in topsDataLog. More...
stateAtTime	getState (self, time)
	Get the state of device components as of the given time. More...
value data	getValue (self, ID)
	Get the latest value for the given component. More...
event	defineEvent (self, name, varargin)
	Define the event of interest for one of the input components. More...
	defineEventsFromComponents (self, names, varargin)
	defineEventsFromComponents More...
	defineEventsFromStruct (self, eventStruct, setName, keepExisting, inactivate)
	defineEventsFromStruct More...
	showActiveEvents (self)
	Mostly for debugging.
	activateEventSet (self, name)
	Swap in a set of events.
	activateEvents (self)
	Activate all events. More...
	deactivateEvents (self)
	Deactivate all events. More...
activeFlags	getActiveFlags (self)
	Get all active flags.
	setActiveFlags (self, activeFlags)
	Set all active flags from array.
	setEventsActiveFlag (self, activateList, deactivateList)
	Set/unset activeFlag. More...
name data	getNextEvent (self, isPeek, acceptedEvents)
	Get the next event that was detected in read(). More...
lastName lastID names IDs	getHappeningEvent (self, time)
	Get events that are happening at the current time. More...
name waitTime data	waitForEvents (self, eventNames, maxWait)
	Wait for event(s)
nEvents	getNumberOfEvents (self)
	Get the number of events in eventQueue. More...
IDs	getComponentIDs (self)
	Get an array of unique integer component IDs. More...
ID	getComponentID (self, nameOrID)
	Get ID of component by name or ID
name	getComponentName (self, nameOrID)
	Get name of component by name or ID
indices	getComponentIndicesByID (self, IDs)
	Get array of indices for the given component IDs
indices	getComponentIndicesByName (self, names)
	Get array of indices for the given component names
time	getDeviceTime (self)
	Get the current time from clockFunction.
	setDeviceTime (self, val)
	Set the device time
	startTrial (self, varargin)
	startTrial() More...
	finishTrial (self, varargin)
	finishTrial() More...
	plotData (self)
	Open a figure with continuously read device data. More...
	startTrialDevice (self, varargin)
	Overloaded methods.
Protected Methods inherited from dotsReadable
isOpen	openDevice (self)
	Locate and acquire input device resources (for subclasses). More...
	closeDevice (self)
	Release input device resources (for subclasses). More...
	resetDevice (self, varargin)
	Reset the device.
status	calibrateDevice (self, varargin)
	Calibrate the device (for subclasses). More...
isRecording	startRecording (self)
	Turn on data recording from the device (for subclasses).
isRecording	stopRecording (self)
	Turn off data recording from the device (for subclasses).
components	openComponents (self)
	Locate and acquire device components (for subclasses). More...
	closeComponents (self)
	Release device components (for subclasses). More...
newData	readNewData (self)
	Read and format incoming data (for subclasses). More...
isEvent	detectEvents (self, data)
	Use new data to look up events of interest (used internally). More...
newSize	resizeEventQueue (self, minSize, doClear)
	Resize and optionally clear the event queue (used internally). More...
nEvents	enqueueEvents (self, eventValues)
	Add events of interest to the event queue (used internally). More...
eventValue nEvents	dequeueEvent (self, isPeek)
	Remove the next queued event of interest (used internally). More...
Static Methods inherited from dotsReadable
static isHappening data readable	isEventHappening (readables, eventName)
	Is the named event happening now? More...
static didHappen waitTime data readable name	waitForEvent (readables, eventName, maxWait)
	Wait for the named event to happen. More...
static data	loadDataFile (filename, varargin)
	Load data from file. More...

Properties and Events

sampleFrequency

Property sampleFrequency

frequency in Hz of eye tracker data samples

Subclasses must supply the sample frequency of their eye tracker device.

readEventsOnly

Property readEventsOnly = true

Flag determining whether only to read event data see readNewData for details.

This defaults to 'true' because typically we assume that eye tracking data will be stored separately.

---

The documentation for this class was generated from the following file:

• dotsReadableEye.m
